Hidden lever flat plate gate valve series |
I produced a dark-plate valve temperature rating for the API Spec 6A of the L, P, R, S, T, U type, on request to provide up to 350 ℉ or 650 ℉ the use of high-temperature environment of the ram Valve. Can provide the API Spec6A norms refractory gate valve. I am the gate valve to the pressure-level 2000,3000,5000,10000,15000 psi. Materials level for the API 6A AA-FF, product specification-level PSL1-3, performance levels for PR1.
Valves are characterized with following:
●
Simple struture,easy to change between gate plate and valve seat
●
Complete gate plate can be used in double direction to extend life
●
Push bearing has large load capacity with rubber&plastic complex valves lever fillers to minimize torsion
●
Bearing seat is furnished with lubricated oil nozzle to fill cream on spot easily
●
Thread valves lever pressing cover allow to change bearing under pressed disc
●
New grooved sealed ring is used between valve body and cover with nuts connection
●
Special hard alloy metals are sprayed on surface of gate plate and seat to have good wear and anti-corrosion
●
Wave spring is furnished between body and seat,to keep good metal sealing between plate and seat at low press
●Ram full-floating design, the valve opening, clearance operations should be in place after the rotating 1 / 4 laps
|
|
| |

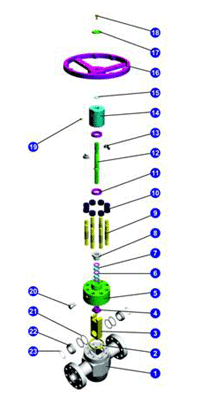

No. |
Name |
Quantity |
Material |
Remark |
1 |
Valve body |
1 |
4130 |
|
2 |
Sealed gasket ring |
1 |
1010 |
|
3 |
Gate plate |
1 |
4130 |
|
4 |
T nut |
1 |
5140 |
|
5 |
Valve cover |
1 |
4130 |
|
6 |
Valves lever fillers |
2 |
NBR |
|
7 |
Wash |
3 |
410 |
|
8 |
Fillers press cover |
1 |
4130 |
|
9 |
Valve cover bolts |
8 |
4130 |
|
10 |
Nut of cover |
8 |
5140 |
|
11 |
Single-direction push ball bearing |
2 |
Assy. |
|
12 |
Valve lever |
1 |
410 |
|
13 |
Brace |
1 |
5140 |
|
14 |
Stent |
1 |
5140 |
|
15 |
“O” sealed ring |
1 |
NBR |
|
16 |
Hand wheel |
1 |
1035 |
|
17 |
Wave spring |
1 |
1035 |
|
18 |
Bolts |
1 |
1035 |
|
19 |
Note Oil Cup |
1 |
Assy. |
|
20 |
Note lipid valve |
1 |
Assy. |
|
21 |
O” sealed ring |
4 |
NBR |
|
22 |
Valve seat |
2 |
4130 |
|
23 |
Wave spring |
2 |
410 |
|
|
| |
|
|
|
| |
|
|
