　Valve > Flat Valve > Hydraulic plate gate valve

Hydraulic plate gate valve

　　Hydraulic plate gate valve ,used widely in automatic control system and remote control. specification rate press nominal diametre grade gate plate valves seat wave spring nut valves lever valves cover cylinder body piston locked nut indication cover stop head gasket valves fillers Soft sealed mud gate valves this type can up to severe requirement in oil field..
Main specifications and technical parameters Rated pressure :14-105 Mpa (2000-15000psi) Nominal Path :46-103 mm Operating temperature: P U Performance levels: PRI-2 Product specification levels: PSLI-3 Material level: AA-FF Operating pressure :7.5-10 .5 Mpa (107-1500psi)

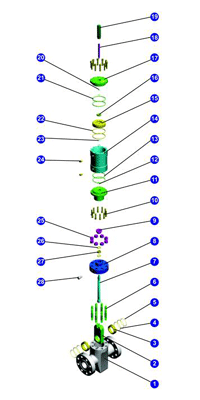

LIST OF PRODUCTS:

No.	Name	Quantity	Material	Remark
1	Valve body	1	4130
2	Gate plate	1	4130
3	Valves seat	2	4130
4	Wave spring	2	410
5	O wave spring	4	NBR
6	Valve cover bolts	8	4130
7	Valves lever	1	410
8	Valves cover	1	4130
9	Fillers press cover	1	4130
10	Tight set screw	20	1035
11	The cylinder head	1	4130
12	O wave spring	2	NBR
13	O wave spring	2	NBR
14	Cylinder	1	4130
15	Pistons	1	4130
16	Locking Nut	1	5140
17	On the cylinder head	1	4130
18	Instructions Pole	1	410
19	Valve Cover	1	1035
20	O wave spring	2	NBR
21	O wave spring	2	NBR
22	O wave spring	2	NBR
23	O wave spring	2	NBR
24	Plug	2	1045
25	Valve cover nut	8	5140
26	Gasket	2	410
27	Stem packing	5	NBR
28	Note lipid valve	1	Assy.

[1]　[2]　[3]
